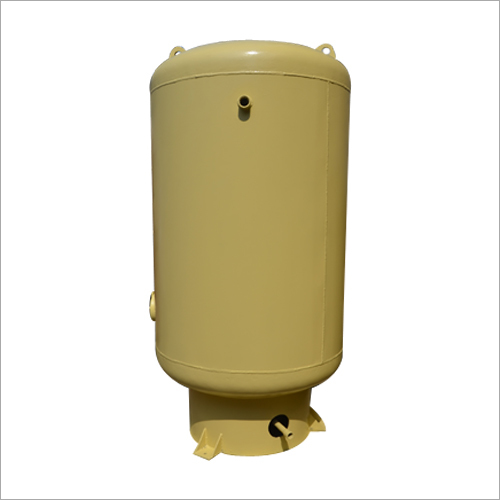

Air Receiver Tank is made accessible to the customers in different technical specifications. The offered tank mainly works as a reservoir of compressed air. The offered tank also helps in minimizing the pulsation in the system caused by a cyclic process downstream. Known for high operational fluency, this tank is precisely engineered with the use of advanced components. In addition to this, the provided tank is also demanded for removing water from compressed air system by allowing the air to cool.
Roteck offer compressed Air Receivers having volumetric capacity range from 300 Ltrs to 20,000 Ltrs, All Compressed air tanks are stage wise inspected as per relevant code requirement. The small capacity air receivers can be supplied up to a working pressure of 40 kg/Cm2 g and are provided with all necessary fittings and accessories like inlets/ outlet connections flanged / screwed, Pr. Gauges Safety Valves and Auto / Manual Drain Valve etc.
The Air Receivers can be supplied under any third party / CCE inspection agency according to customer specific requirements.
Air Receivers are fabricated as per following standard:
Material of Construction: IS 2062 / IS-2002 /SA - 515 Gr-60/70. / SS-304
Code of Construction : IS-2825 / ASME Sec VIII DIV – I
